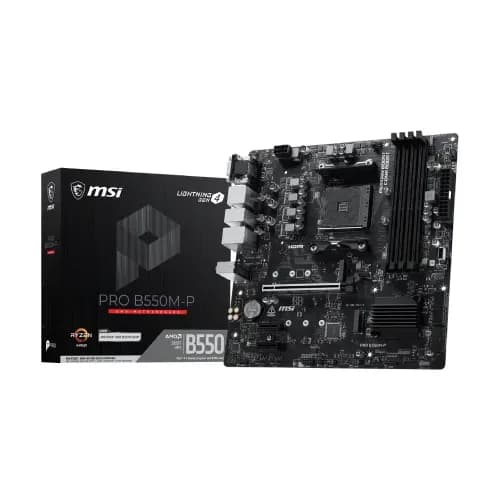

MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard
৳15,700৳16,170Save ৳470
In Stock
Key features
- Supports AMD Ryzen 5000, 5000 G, 4000 G, 3000, and 3000 G-Series desktop processors (AM4 socket)
- 4x DDR4 memory slots supporting up to 128GB and speeds up to 4400+ MHz (OC)
- 2x M.2 slots (PCIe 4.0 x4 / SATA mode and PCIe 3.0 x4) and 4x SATA 6G ports
- Pre-installed Wi-Fi 6E module and Bluetooth 5.3
- Realtek RTL8111H 1Gbps LAN and Realtek ALC897 7.1-channel HD audio
- Integrated graphics outputs including HDMI 2.1, DisplayPort 1.4, and VGA
1
Specification
Audio
| Audio Codec | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
Connectivity
| LAN Port | Realtek RTL8111H 1Gbps LAN |
| Wireless | Wi-Fi 6E (Pre-installed in M.2 Key-E slot, Dual-band 1T1R, 2.4GHz/5GHz/6GHz, 802.11 a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth 5.3 |
Display
| HDMI | 1x HDMI 2.1, maximum resolution of 4K 60Hz |
| DisplayPort | 1x DisplayPort 1.4, maximum resolution of 4K 60Hz |
| VGA | 1x VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
General
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
Graphics
| PCIe Slots | 1x PCI-E x16 slot (PCI_E1 Gen 4.0), 2x PCI-E x1 slots (PCI_E2 and PCI_E3 Gen 3.0) |
Memory
| Type | DDR4 |
| Slots | 4x DDR4 |
| Maximum Memory | Up to 128GB |
| Supported Memory | DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
Physical
| Form Factor | mATX |
| Dimensions | 243.84mm x 243.84mm |
Ports
| USB Ports | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front) |
Processor
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Socket | AM4 |
| Chipset | AMD B550 |
Storage
| M.2 Socket | 2x M.2 (M.2_1 supports up to PCIe 4.0 x4 / SATA mode, M.2_2 supports up to PCIe 3.0 x4) |
| SATA | 4x SATA 6G |
| RAID Support | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
Description
The MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard is designed for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors on the AM4 socket. This Motherboard runs on the AMD B550 chipset and supports four DDR4 memory slots with a maximum capacity of 128GB. Memory speeds reach up to 4400+ MT/s via A-XMP OC mode, covering a broad range from DDR4 2667 through 4400+ MHz across single and dual-rank configurations.
The board includes two M.2 slots, with M.2_1 supporting PCIe 4.0 x4 and SATA mode and M.2_2 supporting PCIe 3.0 x4 for fast NVMe storage. Four SATA 6G ports support RAID 0, 1, and 10 configurations, while M.2 NVMe supports RAID 0 and RAID 1 setups. The standout feature of this Wi-Fi Motherboard is the pre-installed Wi-Fi 6E module supporting 2.4GHz, 5GHz, and 6GHz bands with 802.11a/b/g/n/ac/ax standards and MU-MIMO RX technology. Bluetooth 5.3 support enables seamless wireless peripheral connectivity alongside the high-speed Wi-Fi 6E connection.
Realtek ALC897 delivers 7.1-channel HD audio, while a Realtek RTL8111H 1Gbps LAN controller handles wired network connectivity reliably. Rear USB ports include two USB 2.0 and four USB 5Gbps Type-A connections for comprehensive peripheral support. Four EZ Debug LEDs simplify hardware troubleshooting during system assembly significantly. The MSI PRO B550M-P WIFI6E AMD Motherboard measures 243.84x243.84mm and fully supports Windows 10 and Windows 11 64-bit operating systems.
