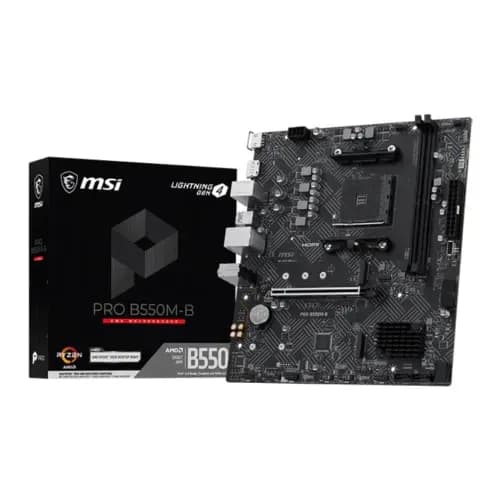

MSI PRO B550M-B AMD AM4 mATX Motherboard
To be announced
Upcoming
This product is an upcoming release. Ordering will be enabled once stock arrives.
Key features
- Supports AMD Ryzen 5000, 4000 G-Series and 3000 Series desktop processors
- Supports 2x DDR4 RAM slots up to 64GB and 4600+ MHz (OC)
- Equipped with PCIe 4.0 support for graphics and M.2 NVMe SSDs
- Features 2x M.2 slots and 4x SATA 6Gb/s ports for versatile storage
- Realtek RTL8111H 1Gbps LAN controller for stable networking
- Includes HDMI 2.1 and DisplayPort 1.2 graphics outputs
Specification
Audio
| Audio Codec | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
Connectivity
| LAN | 1x Realtek RTL8111H 1Gbps LAN port |
Display
| HDMI | 1x HDMI 2.1 (supports 4K 60Hz) |
| DisplayPort | 1x DisplayPort 1.2 (supports 4K 60Hz) |
Expansion Slots
| PCI | 1x PCI-E x16 slot (PCIe 4.0) |
General
| Special Features | 4x EZ Debug LED |
Memory
| Type | DDR4 |
| Slots | 2x DDR4 slots |
| Maximum Memory | up to 64GB |
| Supported Memory | DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
Physical
| Form Factor | mATX (220mm x 243.84mm) |
Ports
| USB (Rear) | 2x USB 2.0, 4x USB 5Gbps Type A |
| USB (Front) | 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C |
Processor
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Socket | AM4 |
| Chipset | AMD B550 |
Storage
| M.2 Socket | 2x M.2 slots (M.2_1 supports PCIe 4.0 x4 / SATA mode, M.2_2 supports PCIe 3.0 x4) |
| SATA | 4x SATA 6G ports |
Description
The MSI PRO B550M-B Motherboard is a dependable and efficient MSI AMD Motherboard designed for mainstream PC builders who want stability, performance, and essential features at a great value. Built on the AMD B550 chipset with support for the AM4 socket, it is fully compatible with a wide range of AMD Ryzen 3000, 4000, and 5000 series processors, making it a versatile choice for gaming and productivity.
With support for DDR4 memory up to 64GB and speeds reaching 4600+ MHz (OC), this motherboard ensures smooth multitasking and fast responsiveness. It features PCIe 4.0 support for next-gen graphics cards and NVMe SSDs, delivering ultra-fast data transfer speeds and expansion. Storage options include dual M.2 slots and multiple SATA ports, providing flexibility for both high-speed SSDs and traditional drives.
Compact in a micro-ATX form factor, it fits easily into smaller cases while still offering robust functionality. Whether you are building a budget-friendly gaming rig or a productivity workstation, the MSI PRO B550M-B Motherboard delivers dependable performance, essential features, and MSI's trusted quality.
