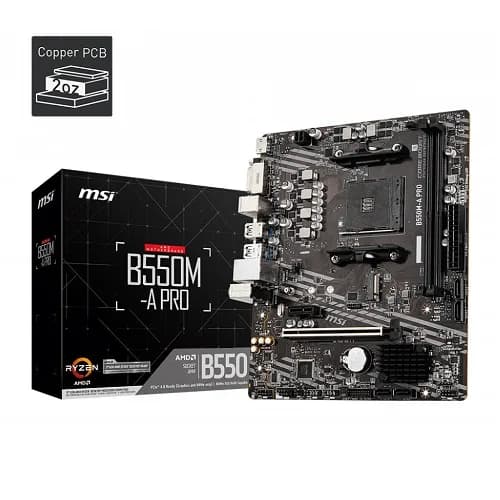

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard
৳10,900৳12,500Save ৳1,600
In Stock
Key features
- Supports AMD Ryzen 5000 & 3000 Series desktop processors
- Supports DDR4 memory up to 4600(OC) MHz
- PCIe 4.0, Lightning Gen4 x4 M.2 support
- 2oz Thickened Copper PCB for better thermal performance
- Realtek RTL8111H Gigabit LAN
- 7-Channel High Definition Audio
1
Specification
Audio
| Audio Codec | Realtek ALC892/ALC897 Codec, 7.1-Channel High Definition Audio |
Connectivity
| LAN | 1 x Realtek RTL8111H Gigabit LAN |
Expansion Slots
| PCI-E X16 | 1 x PCI-E X16 slot |
| PCI-E X1 | 1 x PCI-E 3.0 x1 slot |
Graphics
| HDMI | 1 x HDMI 2.1 port, supporting max resolution 4096x2160 @60Hz |
| DVI-D | 1 x DVI-D port, supporting max resolution 1920x1200 @60Hz |
Memory
| Type | DDR4 |
| Supported Memory | Supports up to 64GB, DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, up to 4600+ MHz by A-XMP OC MODE |
| Maximum Memory | 64GB |
Physical
| Form Factor | Micro ATX |
Ports
| USB Ports | 4x USB 3.2 Gen 1 Type-A (back panel), 2x USB 3.2 Gen 1 (internal), 2x USB 2.0 (back panel), 4x USB 2.0 (internal) |
Processor
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
Storage
| SATA Ports | 4 x SATA 6Gb/s ports |
| M.2 Slots | 1 x M.2 slot (Key M) |
Description
The MSI B550M-A PRO AM4 Micro ATX AMD Motherboard supports AMD Ryzen 5000 and 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G, Ryzen 3 3200G, and AMD Ryzen 4000 G-Series desktop processors). It supports DDR4 memory up to 4600 (OC) MHz and features a premium layout and digital power design to support more cores and provide better performance.
Made with a 2oz Thickened Copper PCB, the enhanced PCB design improves heat dissipation and performance reliability. For superior sound quality, it features studio-grade audio and integrates MSI exclusive tools with a user-friendly interface via Dragon Center software.
