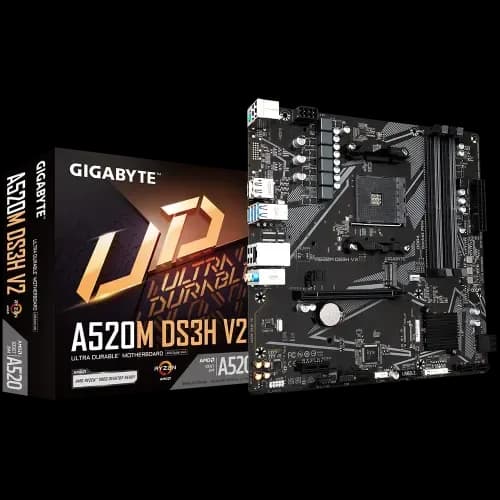

GIGABYTE A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
৳9,500৳10,630Save ৳1,130
In Stock
Key features
- Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors for Socket AM4
- 4x DDR4 DIMM slots supporting up to 128GB memory
- DisplayPort and HDMI outputs supporting up to 5120x2880@60Hz and 4096x2160@60Hz
- Realtek GbE LAN chip for reliable networking
- Ultra Durable PCIe 3.0 x16 slot and M.2 connector supporting PCIe 3.0 x4/x2 SSDs
- Realtek Audio CODEC supporting up to 7.1-channel high definition audio
1
Specification
Connectivity
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
Display
| Graphics | 1 x DisplayPort (max resolution 5120x2880@60Hz), 1 x HDMI port (max resolution 4096x2160@60Hz) |
General
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
Memory
| Slots | 4 x DDR4 DIMM |
| Maximum Memory | 128 GB |
| Supported Memory | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
Processor
| Supported CPU | AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors |
| Chipset | AMD A520 |
Storage
| M.2 Socket | 1 x M.2 connector, supporting Socket 3, M key, type 2280 SSDs (SATA and PCIe 3.0 x4/x2 SSDs) |
| SATA | 4 x SATA 6Gb/s connectors supporting RAID 0, RAID 1, and RAID 10 |
Description
The Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard is a strong and feature-rich choice for individuals wishing to construct a powerful, low-cost PC. This motherboard is compatible with a broad selection of CPUs, including the AMD Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series, making it a good choice for those seeking versatility and compatibility. It supports up to 128 GB of DDR4 RAM and has outstanding overclocking capabilities, reaching speeds of up to 4733 MHz (OC) for high-performance activities. With integrated graphics support via one DisplayPort and one HDMI connector, it provides outstanding video output for multi-display setups, such as gaming, streaming, and content production.
In terms of storage and expansion, the motherboard offers an M.2 connector for PCIe 3.0 x4/x2 SSDs and four SATA 6Gb/s connectors for RAID configurations, ensuring fast data transfer speeds and reliability. It also features Smart Fan 5 technology, which comprises numerous temperature sensors and hybrid fan headers with FAN STOP to ensure effective cooling under heavy workloads. Built with an Ultra Durable design that includes anti-sulfur resistors and high-quality capacitors, it is completely compatible with Windows 10 and 11 64-bit operating systems.
