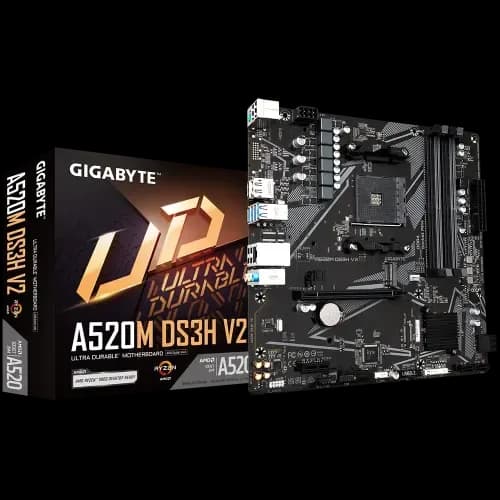

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
৳9,500৳10,630Save ৳1,130
In Stock
Key features
- Model: A520M DS3H V2
- Supported CPU: Ryzen 5000 / 4000 / 3000 G-Series Processors for Socket AM4
- Supported RAM: 4x DDR4, up to 128GB
- Graphics Output: 1x DisplayPort, 1x HDMI
- Realtek GbE LAN chip
- Ultra Durable PCIe 3.0 x16 Slot
1
Specification
Connectivity
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
Display
| Graphics | 1 x DisplayPort, 1 x HDMI port |
General
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
Memory
| Slots | 4 x DDR4 DIMM |
| Maximum Memory | 128 GB |
| Supported Memory | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
Physical
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
Ports
| USB Ports | 4 x USB 3.2 Gen 1 ports on the back panel, 2 x USB 3.2 Gen 1 ports via internal header, 6 x USB 2.0/1.1 ports |
Processor
| Supported CPU | AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors |
| Chipset | AMD A520 |
Storage
| M.2 Socket | 1 x M.2 connector, supporting SATA and PCIe 3.0 x4/x2 SSDs |
| SATA | 4 x SATA 6Gb/s connectors |
Description
The Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard is a strong and feature-rich choice for individuals wishing to construct a powerful, low-cost PC. This motherboard is compatible with a broad selection of CPUs, including the AMD Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series, making it a good choice for those seeking versatility and compatibility.
The Gigabyte A520M DS3H V2 supports up to 128 GB of DDR4 RAM and has outstanding overclocking capabilities, reaching speeds of up to 4733 MHz (OC) for high-performance activities. With integrated graphics support via one DisplayPort and one HDMI connector, it provides outstanding video output, supporting resolutions of up to 5120x2880 at 60Hz and 4096x2160 at 60Hz.
In terms of storage and expansion, the motherboard offers an M.2 connector for PCIe 3.0 x4/x2 SSDs and four SATA 6Gb/s connectors for RAID configurations. It also features Smart Fan 5 technology and an Ultra Durable design that includes anti-sulfur resistors and high-quality capacitors.
